Optima 72 - Gas Zero Clearance Optima 32 - Gas Insert

Optima 34 - Gas Insert

Viewing Area.
Consistent with Archgard's other inserts, the ODVI-34 provides you with a unique log design that can be enjoyed through a larger viewing area. Designed to fit into most fireplace openings, the ODVI-34 can transform your room into a warm

Base price 1,485.43 USD

Base price with tax

Salesprice with discount

Sales price 1,485.43 USD

You Save

Price / COM_VIRTUEMART_UNIT_SYMBOL_: 1,485.43 USD

Basic Unit

Surround Kit

Forged Iron Fronts

Options

Louver Kits

Archgard

Description

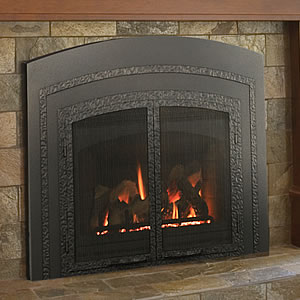

Optima 34 / ODVI-34

WALL-TO-WALL FLAME

Unlike many gas fireplace inserts, Archgard flames can be seen throughout the firebox. The combination of our burner design and our unique log sets allow us to give you the look and feel of a traditional wood fire, complete with glowing embers.

MULTIPLE OPTIONS

You have the option to add decorative accessories to your fireplace from our range of designer fronts, louvres or overlays.

$\"\"$

OPTIONS
LOUVRES

$\"\"$ Brushed Nickel BNLK-32	$\"\"$ Gold GDLK-32	$\"\"$ Nickel/Black MNLK-32

$\"\"$ Gold/Black MGLK-32

DOOR OVERLAYS

$\"\"$ Brushed Nickel Overlay BNO-32	$\"\"$ Gold Overlay GO-32	$\"\"$ Cottage Overlay FDO-32-10

$\"\"$ Traditional Overlay FDO-32-12	$\"\"$ Black Bay Door BBAY-32	$\"\"$ Black Arched Forged Iron Front BAFIF-32

SURROUNDS

All Archgard inserts require the addition of one of our stylish, decorative surrounds. They have a dual role of function and fashion; they hide the seam between your Archgard insert and existing masonry fireplace, while adding timeless elegance to your room.



$\"\"$ Beveled Surround Kit DSK	$\"\"$	$\"\"$ Euro Surround Kit ESK	$\"\"$	$\"\"$ Large Surround Kit LSK

TRIMS

Depending on what other accessories you have chosen, you may want to complete the look of your fireplace with one of our decorative trims. While each surround comes with the standard black trim, if for example you have chosen the nickel overlay for your fireplace, you may want to complement it by adding the nickel trim kit.



$\"\"$ Nickel	$\"\"$	$\"\"$ Gold	$\"\"$	$\"\"$ Pewter

FORGED IRON FRONTS (FIF)

Archgard Forged Iron Fronts blend the rustic look and feel of a traditional wood-burning fireplace with the modern technology of a gas fireplace. Applying our many years of experience, we individually handcraft each FIF to ensure you receive a one of a kind product. Unlike many decorative fronts in the market, our FIF’s are durable and will stand up to the physical demands of the consumer, without sacrificing style and design.

LOOKS GOOD OFF & ON!

It’s easy to see why the design of our FIF’s will enhance the appearance of your fireplace. Whether you choose an Arch, Square or Bow, our FIF’s with their hammered powder coated finish, will give your room a warm, inviting look even when your Archgard fireplace is turned off. However, the true magic of the FIF comes to life when you turn on your fireplace. The mesh screen softens the edges and blurs the lines between a real fire and gas fire, while the finish of the FIF surround creates a smooth and stylish transition for your Archgard fireplace.

Arched fifs		Square fifs		Bow fifs
$\"\"$ FIF Black Arch	$\"\"$	$\"\"$ FIF Black Square	$\"\"$	$\"\"$ FIF Black Bow

$\"\"$ FIF Pewter Arch		$\"\"$ FIF Pewter Square		$\"\"$ FIF Pewter Bow

SPECIFICATIONS

Input Rating
Natural gas	23,000 - 34,000 BTU/HR 6.6 - 9.8 KW/HR
Propane	26,000 - 34,000 BTU/HR 7.5 - 9.8 KW/HR

Minumun Fireplace Dimensions
OPENING HEIGHT	20" (508MM)
DEPTH	15.75" (400MM)
REAR WIDTH	16.75" (426MM)
OPENING WIDTH	27" (686MM)

Tested and approved to Canadian and American standards, ANSI Z21.88b-2003/CSA 2.33b-2003 and CAN/CGA-2.17-m91

Clearance to Combustibles
MINIMUM FIREPLACE OPENING	29 5/8" (753MM) WIDE, 15 3/4" (400MM) DEEP & 22" (559MM) HIGH
VENT SIZE	2 X 3" (76MM) FLEXIBLE GAS LINER
MANTLE CLEARANCE FROM BOTTOM	37" (940MM)
SIDE CLEARANCE FROM FACE PLATE	1" (25MM)
ALCOVE CEILING CLEARANCE FROM TOP OF FACE PLATE	24" (610MM)

Lifetime warranty on specific items. Please ask your dealer for details.

$\"\"$

Units in box: 1
